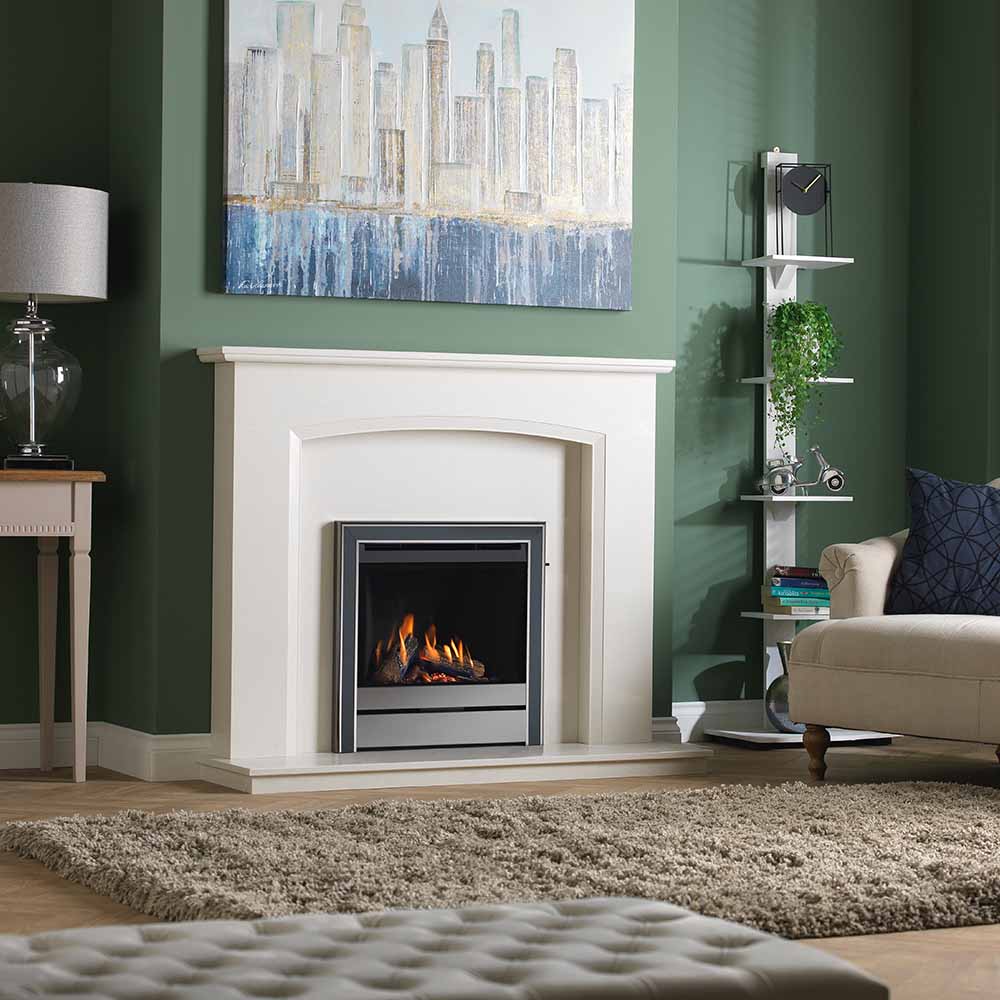

Ravel 550 HE Micro Marble

This wide format glass fronted gas appliance has the appeal of a European fire but the benefit of fitting into a standard 16” x 22” chimney builders opening. The fire incorporates under-log burners to provide the most realistic effect, with a unique turndown feature allowing the rear burners to be turned of independently to keep the flame picture alive when running on low.

This installation requires a back panel with specific opening sizes and a 75mm rebate. Normally an appliance of this stature would require building work and installation of a lintel. Talk to your dealer for full details. The Ravel 550 is supplied with slide control as standard.

FLUE OPTION:

• Brick Chimney
• Pre-Fabricated

CONTROL: Slide

FUEL BED: Log

FUEL: Natural Gas

RAVEL 550 HE TRIM OPTIONS:

• Brass/Black
• Satin/Black
• Chrome/Black
• Bl.Nickel/Black
• Anthracite

SLIDE LEVER OPTIONS:

• Brass
• Chrome
• Black Nickel
• Black

GAS CONSUMPTION: 85% EFFICIENCY

• 4.7kW – Heat Input (High)
• 2.9kW – Heat Input (Low)
• 3.6kW – Heat Output (High)
• 2.1kW – Heat Output (Low)

STANDARD MANTEL FINISH OPTIONS:

• White
• Grey
