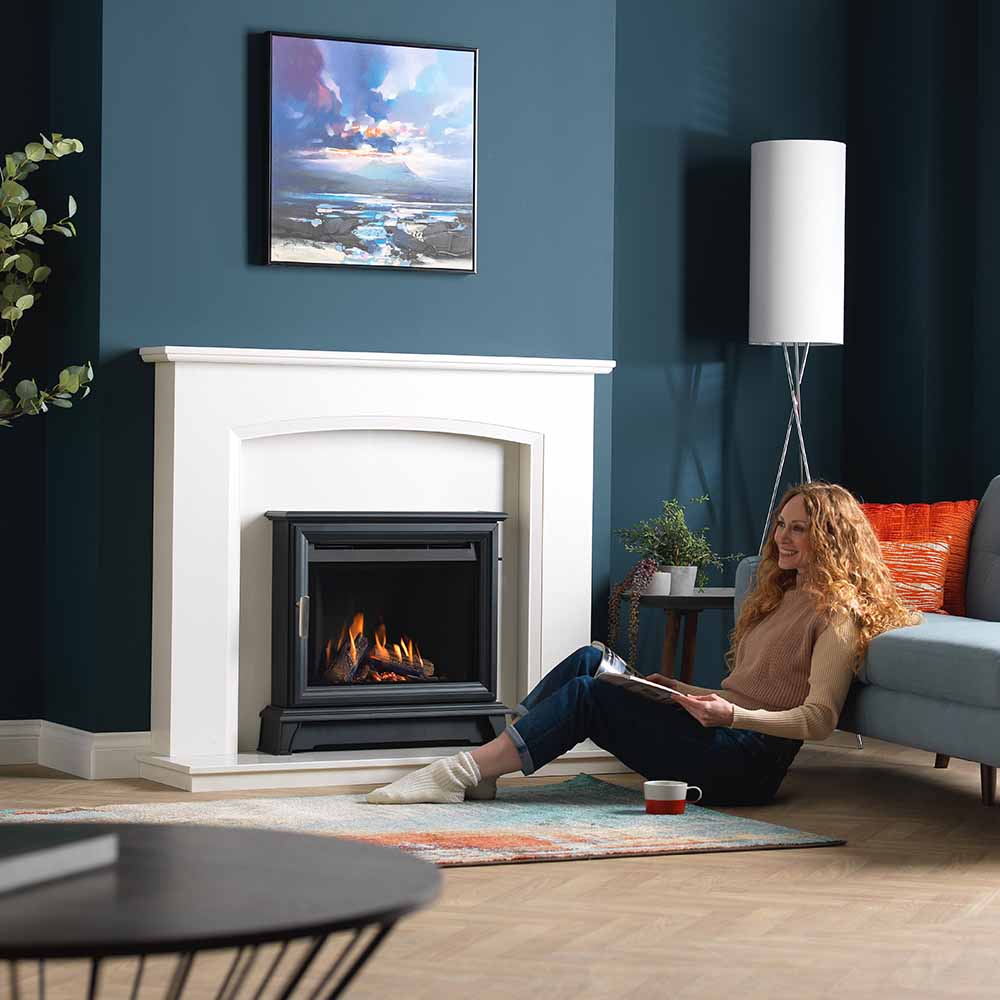

Ravel 550 HE Inset Stove

The fire incorporates under-log burners to provide the most realistic effect, with a unique turndown feature allowing the rear burners to be turned off independently to keep the flame picture alive when running on low.

This 22” appliance installs into any standard 16” x 22” back panel and is shrouded with an aluminium high definition stove trim, so it’s a perfect upgrade from your old 16” fire without changing the fireplace. Talk to your dealer for full details. The Ravel 550 is supplied with slide control as standard.

FLUE OPTION:

• Brick Chimney
• Pre-Fabricated

CONTROL: Slide

FUEL BED: Log

FUEL: Natural Gas

STOVE HANDLE OPTIONS:

• Satin
• Black

Note: Satin handle is supplied as standard. Black handle is an optional extra.

SLIDE LEVER OPTIONS:

• Chrome
• Black

GAS CONSUMPTION: 85% EFFICIENCY

• 4.7kW – Heat Input (High)
• 2.9kW – Heat Input (Low)
• 3.6kW – Heat Output (High)
• 2.1kW – Heat Output (Low)

STANDARD MANTEL FINISH OPTIONS:

• White
• Grey
