Ravel 600 HIW

The Ravel 600 features the latest in under-log burner technology is sure to impress with its stunning fuel bed layout. The unique burner system allows the fire to be turned to low whilst still retaining an impressive flame picture.

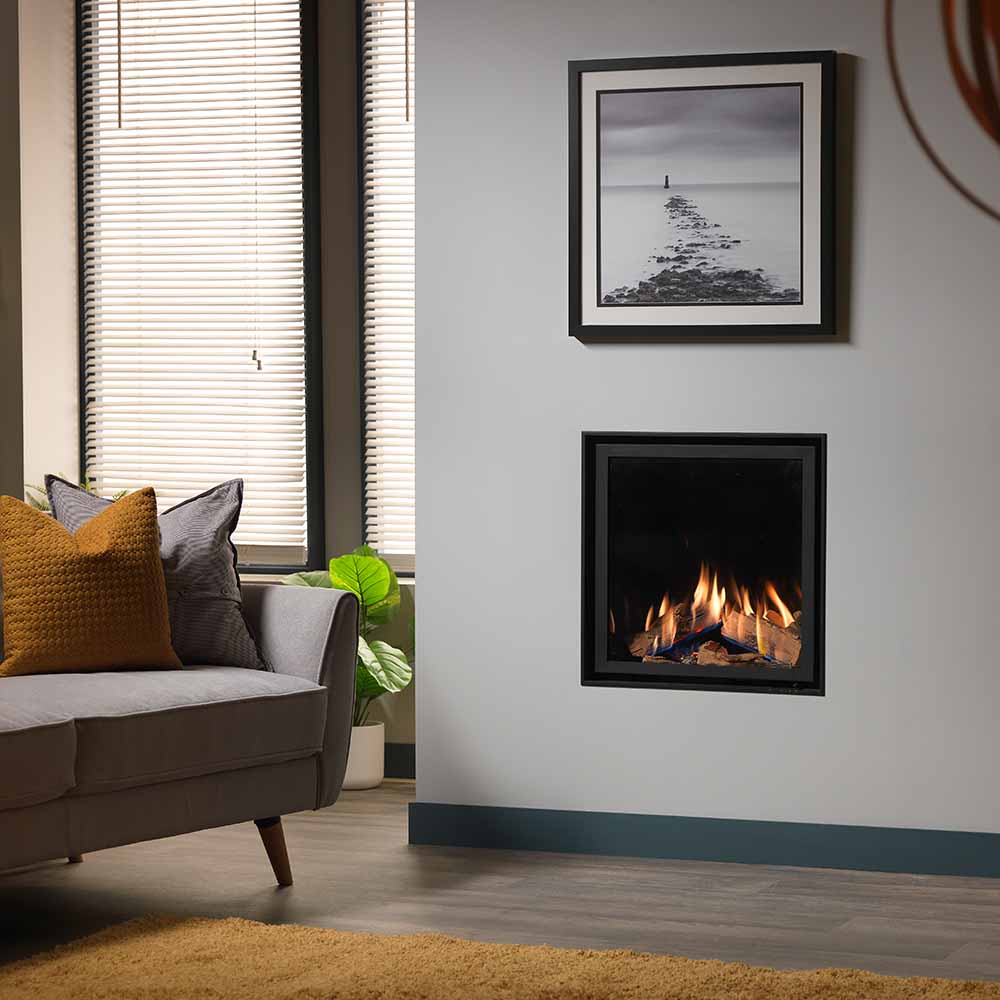

Shown here installed as a Hole in the Wall fire with the sleek Edge trim, for the trimless look. The Ravel 600 will fit nearly all masonry fireplace openings.

FLUE OPTION:

• Brick Chimney
• Pre-Fabricated

CONTROL: Slide

FUEL BED: Log

FUEL:

• Natural Gas
• Propane

GAS CONSUMPTION – NATURAL: 83% EFFICIENCY

• 6.8kW – Heat Input (High)
• 4.7kW – Heat Input (Low)
• 5.1kW – Heat Output (High)
• 3.3kW – Heat Output (Low)

GAS CONSUMPTION – LPG: 86% EFFICIENCY

• 6.7kW – Heat Input (High)
• 4.4kW – Heat Input (Low)
• 5.3kW – Heat Output (High)
• 3.1kW – Heat Output (Low)
