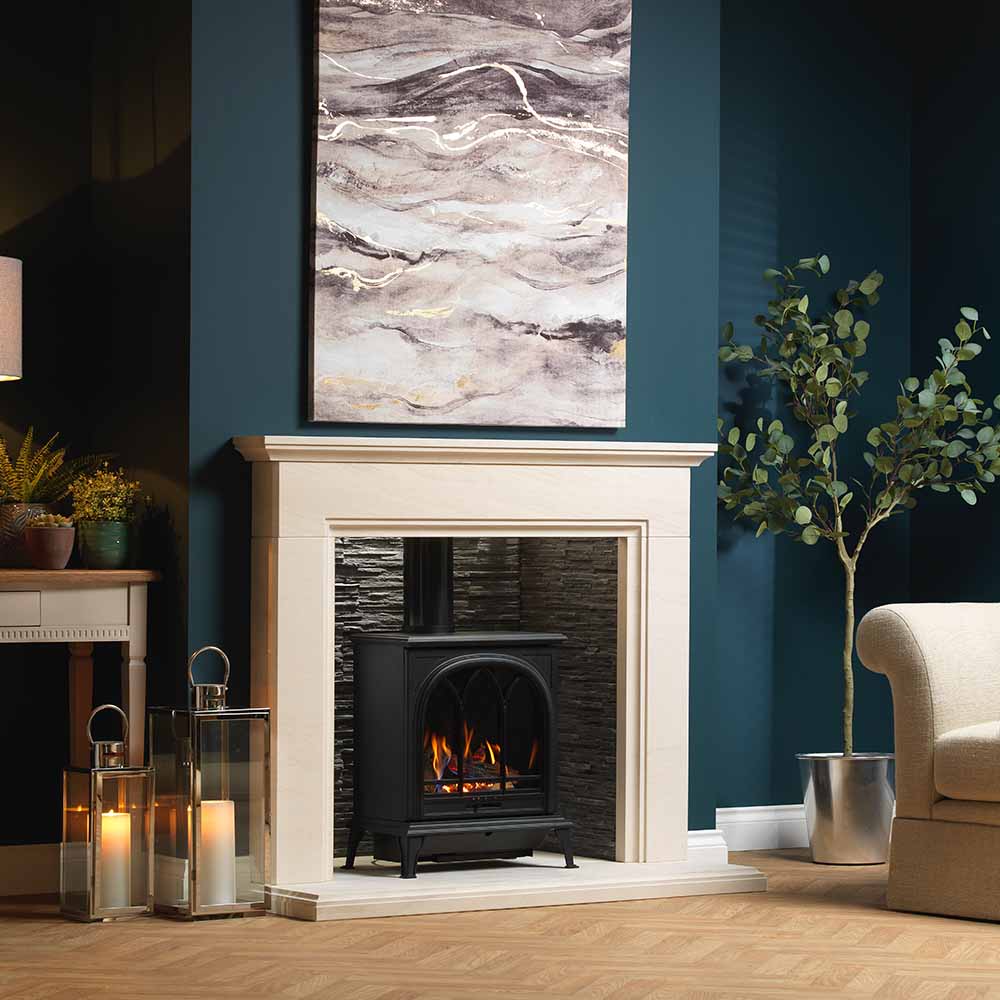

Ravel 400T GAS STOVE

The stove is easy to control with a simple slide lever located below the glass screen. It features a light weight aluminium casting which provides crisp and clean lines, aesthetics are at the heart of this product. The fire incorporates under-log burners to provide the most realistic effect, with a unique turndown feature allowing the rear burners to be turned off independently to keep the flame picture alive when running on low. And, just like the Ravel 400C, it can be installed into Class 1, Class 2 and precast flues*. The Ravel 400T is also available as a balanced flue model.

FLUE OPTION:

• Brick Chimney
• Pre-Fabricated
• Pre-Cast*

CONTROL: Slide

FUEL BED: Log

FUEL:

• Natural Gas
• Propane

GAS CONSUMPTION NATURAL: 82% EFFICIENCY

• 4.25kW – Heat Input (High)
• 2.6kW – Heat Input (Low)
• 3.1kW – Heat Output (High)
• 1.8kW – Heat Output (Low)

GAS CONSUMPTION LPG: 84% EFFICIENCY

• 4.5kW – Heat Input (High)
• 2.6kW – Heat Input (Low)
• 3.4kW – Heat Output (High)
• 1.9kW – Heat Output (Low)
