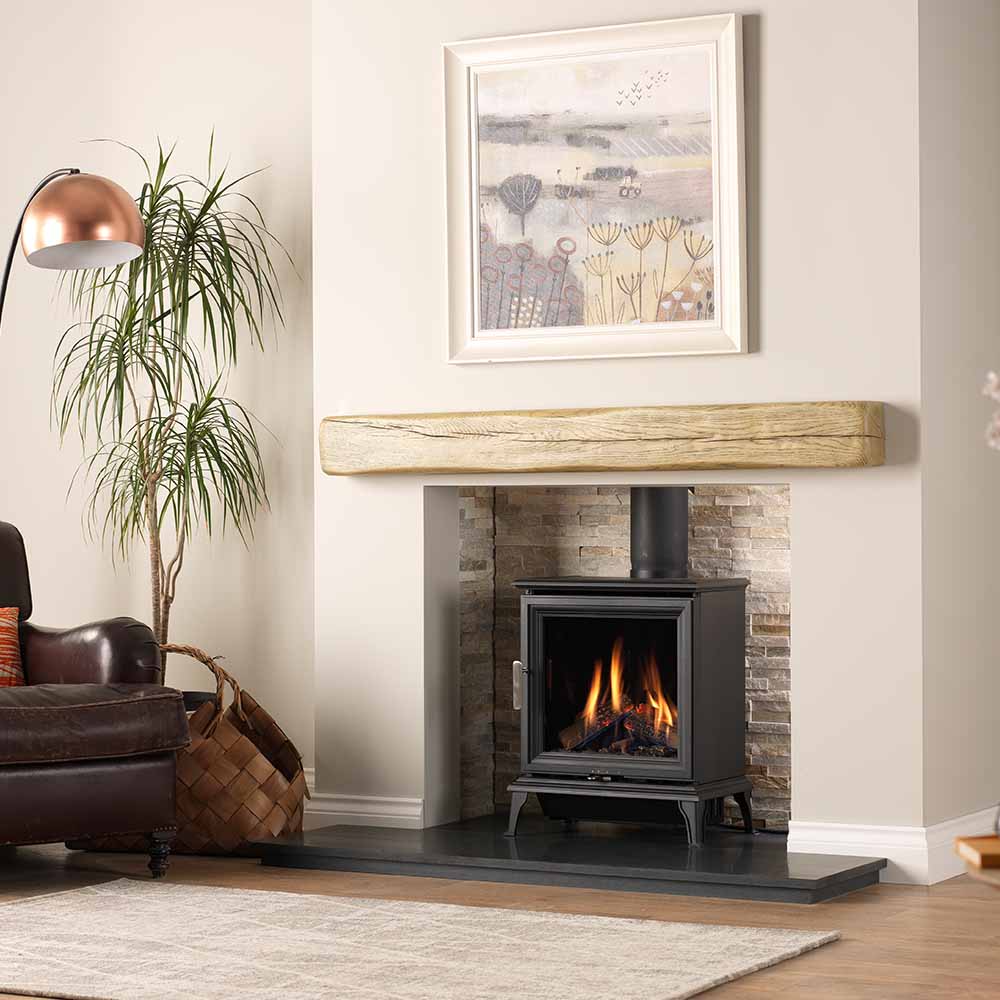

Ravel 400C GAS STOVE

This gas stove version features crisp and clean lines only possible with the light weight aluminium extrusion employed in this design. Suitable for use with Class 1, Class 2 and precast flues.* The unique burner system allows the fire to be turned to low whilst still retaining an impressive flame effect.

FLUE OPTION:

• Brick Chimney
• Pre-Fabricated
• Pre-Cast*

CONTROL: Slide

FUEL BED: Log

FUEL:

• Natural Gas
• Propane

STOVE HANDLE OPTIONS:

• Satin
• Black

Note: Satin handle is supplied as standard. Black handle is an optional extra.

SLIDE LEVER OPTIONS:

• Chrome
• Black Nickel
• Black
• Ezi-Grip

GAS CONSUMPTION NATURAL: 82% EFFICIENCY

• 4.25kW – Heat Input (High)
• 2.6kW – Heat Input (Low)
• 3.1kW – Heat Output (High)
• 1.8kW – Heat Output (Low)

GAS CONSUMPTION LPG: 84% EFFICIENCY

• 4.5kW – Heat Input (High)
• 2.6kW – Heat Input (Low)
• 3.4kW – Heat Output (High)
• 1.9kW – Heat Output (Low)
