Ravel 800 Limestone

The Ravel 800 features the latest in under-log burner technology and is sure to impress with it’s stunning fuel bed layout. The unique burner system allows the fire to be turned to
low whilst still retaining an impressive flame picture.

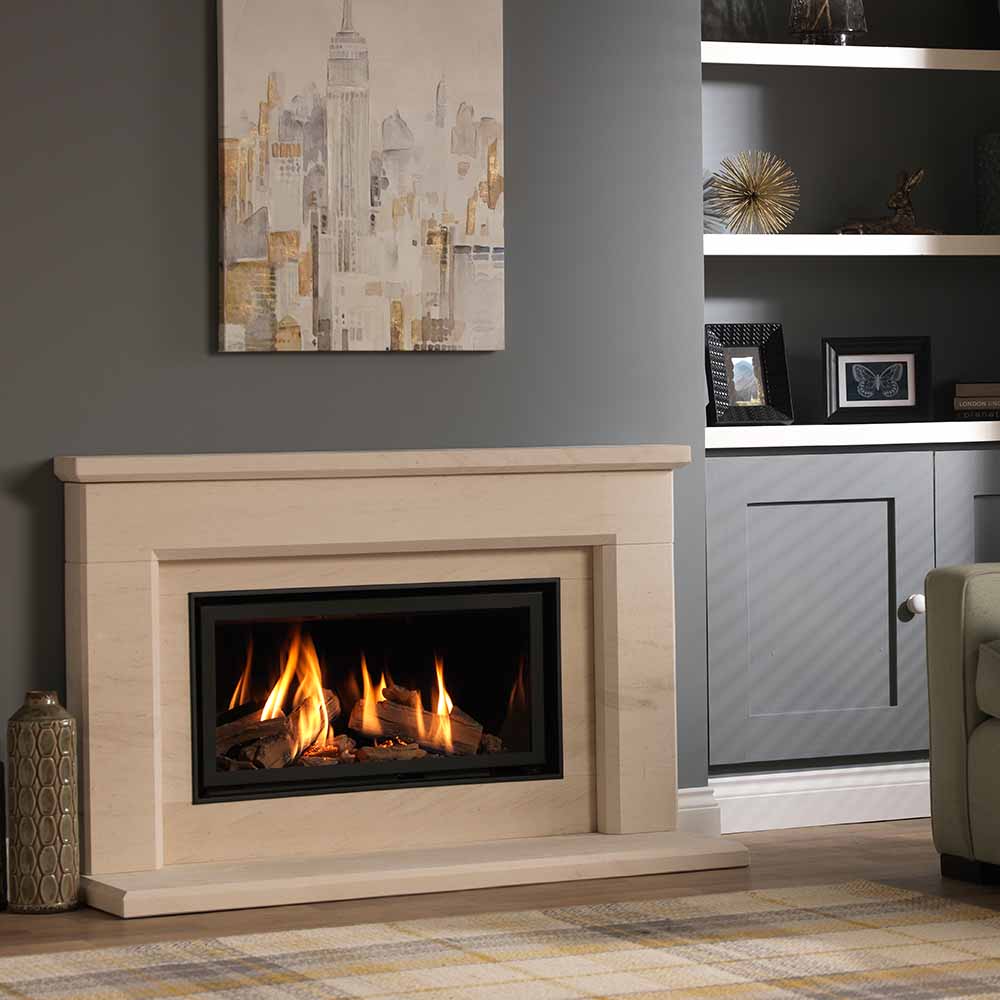

Shown here in the Asti Limestone surround, this fire is available with two trim styles, the Edge trim, for the sleek trimless look or the conventional style Standard trim.

FLUE OPTION:

• Brick Chimney
• Pre-Fabricated

CONTROL: Slide

FUEL BED: Log

FUEL:

• Natural Gas
• Propane

NATURAL GAS: 82% EFFICIENCY

• 6.6kW – Heat Input (High)
• 4.6kW – Heat Input (Low)
• 4.9kW – Heat Output (High)
• 3.2kW – Heat Output (Low)

LPG: 82% EFFICIENCY

• 6.6kW – Heat Input (High)
• 4.3kW – Heat Input (Low)
• 5.0kW – Heat Output (High)
• 3.0kW – Heat Output (Low)
